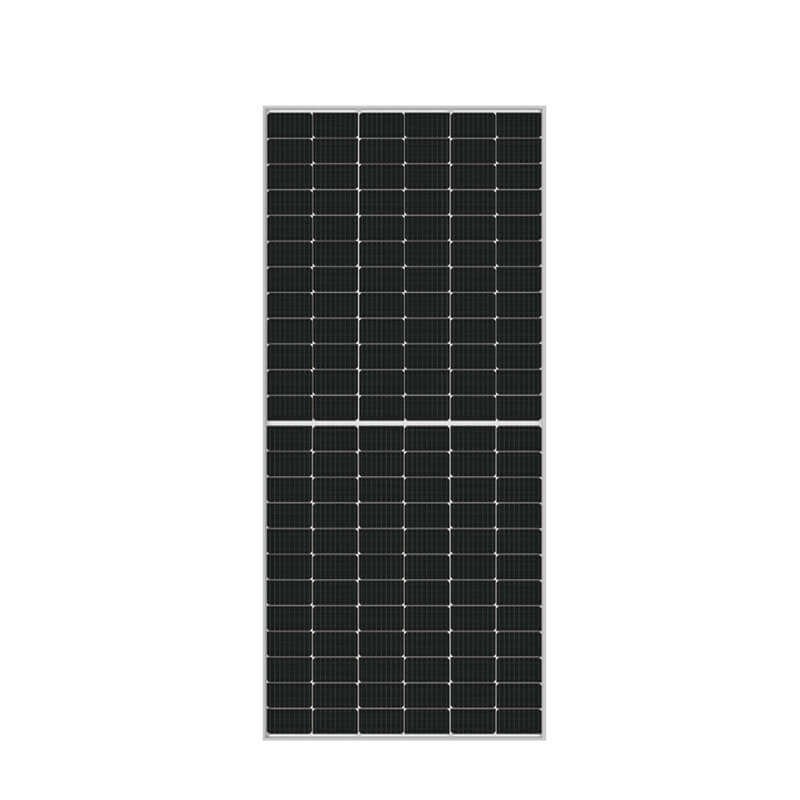

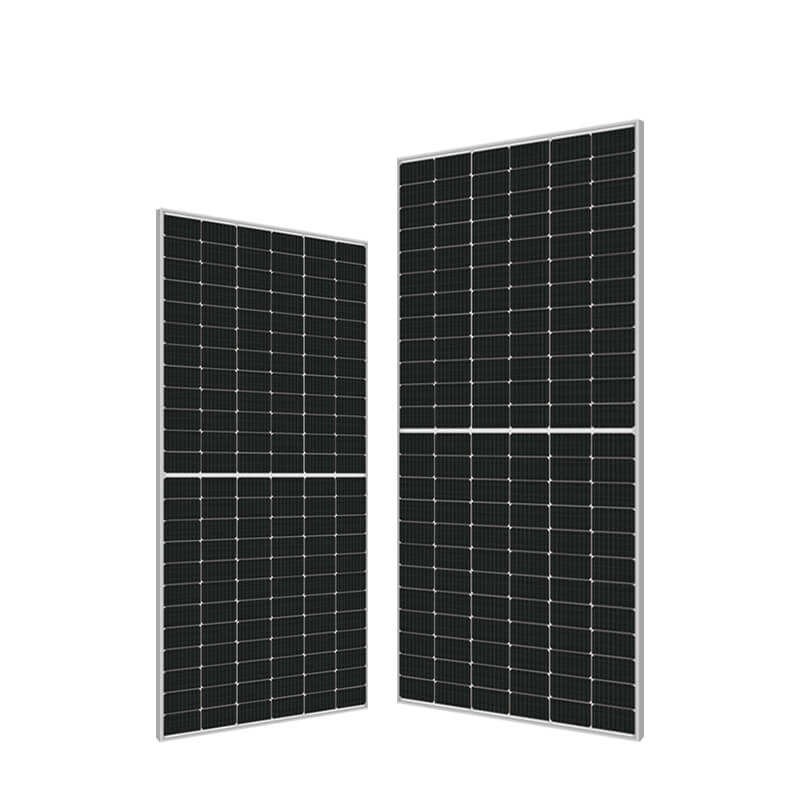

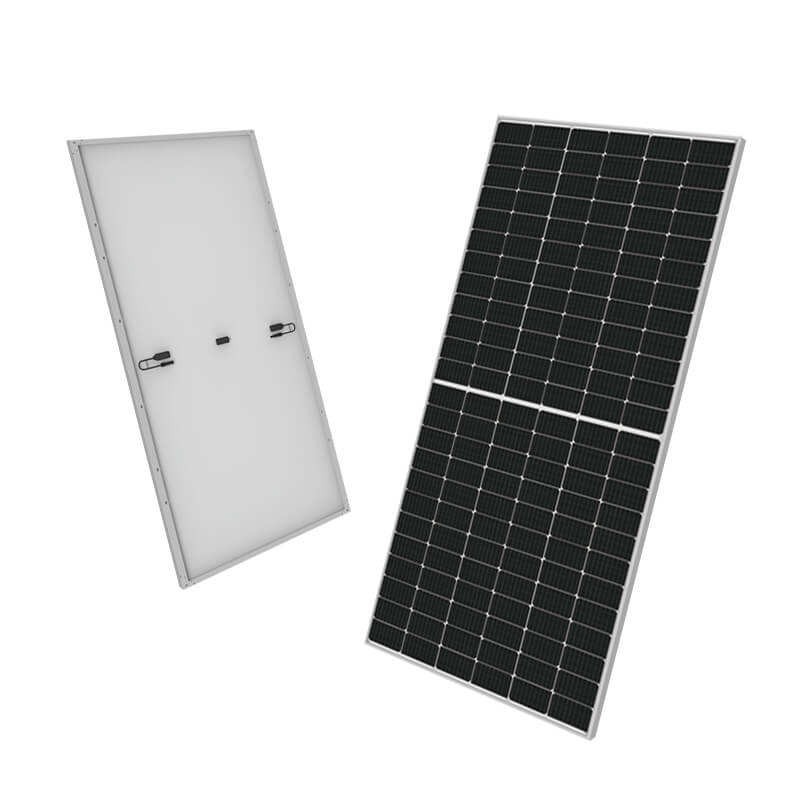

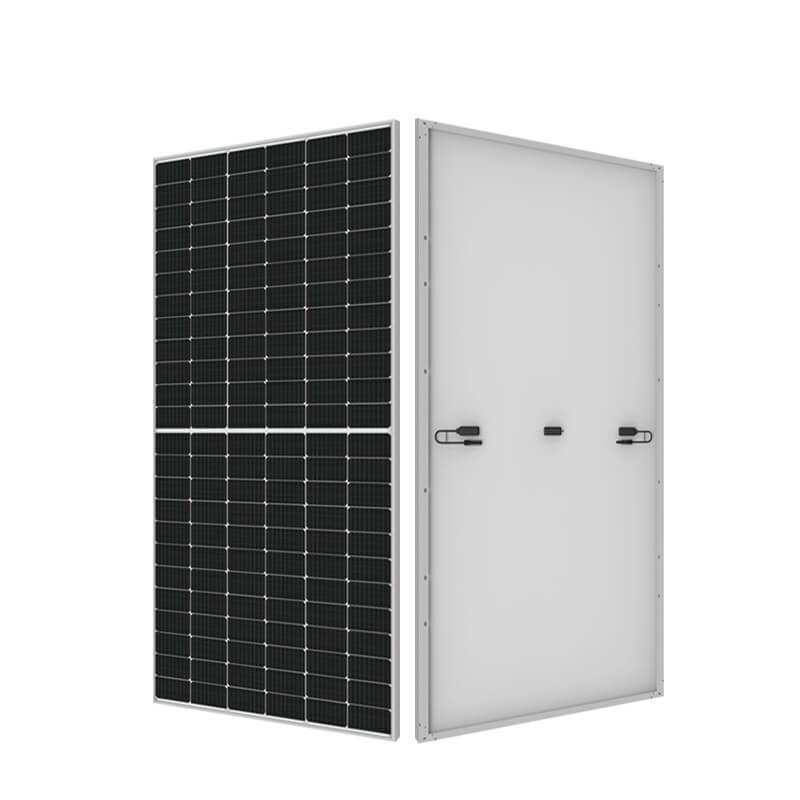

SPECIFICATIONS
|
Cell | Mono |
Weight | 29kg |
Dimensions | 2279x 1134 x 35mm |
Cable Cross Section Size | TUV: 4mm2 (0.006inches2)/UL: 12AWG |
No. of Cells | 144 (6x24) |

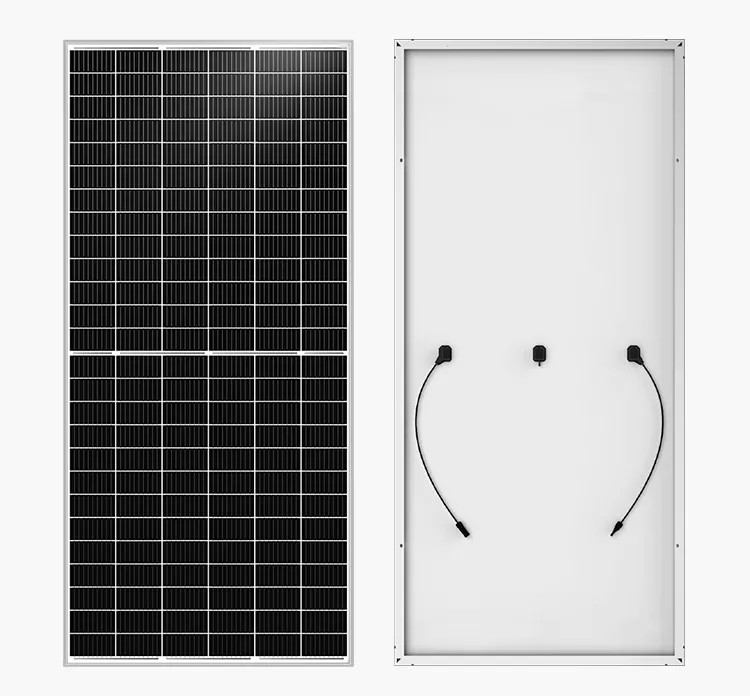

Junction Box | IP68, 3 diodes |
Cable Length | Portrait 300mm/Landscape 1200mm/Customized |
Packaging Configuration | 31pcs/Pallet, 620pcs/40ft Container |
ELECTRICAL PARAMETERS AT STC |
Rated Maximum Power (Pmax) [W] | 530 | 535 | 540 | 545 | 550 |
Maximum Power Voltage(Vmpp/V) | 41.7 | 41.8 | 41.9 | 42.0 | 42.1 |
Maximum Power Current(Impp/A) | 12.71 | 12.80 | 12.89 | 12.98 | 13.07 |
Open Circuit Voltage(Voc/V) | 49.5 | 49.6 | 49.7 | 49.8 | 49.9 |
Short Circuit Current(Isc/A) | 13.44 | 13.53 | 13.62 | 13.71 | 13.80 |
Module Efficiency [%] | 20.3% | 20.7% | 20.9% | 21.1% | 21.3% |
Power Tolerance | 0~+5W |
Temperature Coefficient of Isc [α_Isc] | +0.043%/°C |
Temperature Coefficient of Voc [β_Voc] | -0.26%/°C |
Temperature Coefficient of Pmax [γ_Pmp] | -0.36%/°C |
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5 |
